Condulets for Hazardous Areas
Product Menu

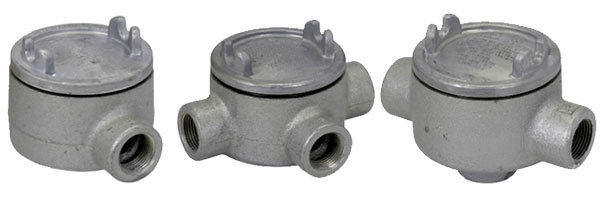

GUA: Cl. I, Div. 1 & 2, Groups C, D; Cl. II, Div. 1, Groups E, F, G; Cl. II, Div. 2, Groups F, G; Cl. III.
Hub sizes: ½”, ¾”, 1″, 1¼”, 1½”, 2″; Cover opening Ø from 2″ to 5″.
GUA series conduit outlet boxes are installed within hazardous area conduit systems to:
• Protect conductors in threaded rigid conduit.
• Act as pull and splice boxes.
• Connect lengths of conduit.
• Change conduit direction.
• Provide access to conductors for maintenance and future system changes.
• Act as mounting outlets for fixtures (with appropriate covers).
• Act as sealing fittings (with appropriate covers).

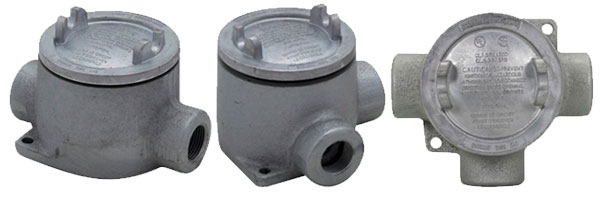

EAB: Cl. I, Div. 1 & 2,; Groups A, B, C, D; Cl. II, Div. 1, Groups E, F, G; Cl. II, Div. 2, Groups F, G; Cl. III.
Hub sizes: ½”, ¾”, 1″.
EAB series conduit outlet boxes are installed in conduit systems within hazardous areas to:
• Provide protection against exterior explosion where acetylene, hydrogen and other hazardous gases are present.
• Protect conductors in threaded rigid conduit.
• Act as pull and splice boxes.
• Interconnect lengths of conduit.
• Change conduit direction.
• Provide access to conductors for maintenance and future system changes.
EAJ: Cl. I, Div. 1 & 2, Groups A, B, C, D; Cl. II, Div. 1, Groups E, F, G; Cl. II, Div. 2, Groups F, G; Cl. III.
Hub sizes: ½”, ¾”, 1″ except EAJT (½”, ¾”, 1″, 1¼”, 1½”, 2″), Cover opening Ø3-3/16″.
EAJ series conduit outlet boxes are installed in conduit systems within hazardous areas to:
• Protect conductors in threaded rigid conduit.
• Act as pull and splice boxes.
• Interconnect lengths of conduit.
• Change conduit direction.
• Provide access to conductors for maintenance and future system changes.
