Zforce ZNP Arresters
Zforce Arresters have mold-on polymer housing for the ultimate seal against moisture ingress.
High strength Fiberglass for high fault-withstand design.
Integrated Ground Lead Disconnet for fast, reliable operation. Operates in less than 2 seconds at 1 amp and less than 2 cycles at 1,000 amps

ZIP Intermediate Class Polymer Arresters
The type “ZIP” intermediate class arresters offer the benefits of polymer housings for system voltages up to 161kV. The arresters are approxiately 1/5 the weight of the porcelain equivalent. Handling and installation become much easier tasks. Also, the risk of damage to the housing is reduced compared to porcelain.

NRS Series Non-metallic Industrial Disconnect Switches

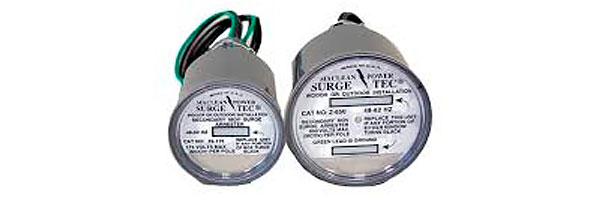

Surge Tec® arresters incorporate special features that make them stand above other Secondary Arresters and Transient Voltage Surge Suppressors (TVSS).
The arresters are available in 175 volt, 480 volt and 650 volt AC ratings for application on system voltages below 650 volts phase to ground and operate at frequencies between 48 and 62 Hz.

Cross Plate Anchor
Cross plate anchors are made for installation in holes augered by power drillers.
One piece plate anchor formed of two structureal members that are ribbed for reinforcement.
A retainer on the bottom holds the nut from the forged eye rod (sold separately).

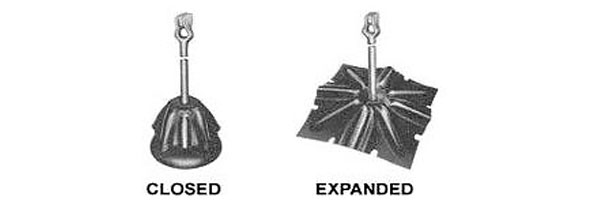

Expanding (Bust) Anchor
Expanding (bust) anchors are made for installation in holes augered by power drillers.
One piece formed anchor with wings and a base.
A retainer on the bottom holds the nut from the forged eye rod (sold separately).

High strength pipe
Rugged helix for difficult soils. Lead point “stinger” to facilitate initial penetration and “setting the plumb” Structural steel top base plate with slots for variable bolt hole circles to meet pole base dimensions. Supplied with high strength bolts to secure pole. Available in 6”, 8”, 10” diameters. Lengths from 5 – 10 ft. Two – sided entrance wiring slots. Torque ratings up to 20,000 ft-lbs. Hot dip galvanized for corrosion protection.
