Conduit Sealing Fittings, Drains and Breathers
Product Menu

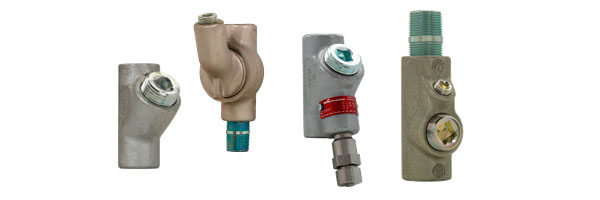

CONDUIT SEALING FITTINGS
Cl. I, Div. 1 & 2, Groups A, B, C, D; Cl. II, Div. 1, Groups E, F, G; Cl. II, Div. 2, Groups F, G; Cl. III
Applications:
• Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures.
• Limit explosions to the sealed off enclosure.
• Limit precompression or pressure “piling” in conduit systems.

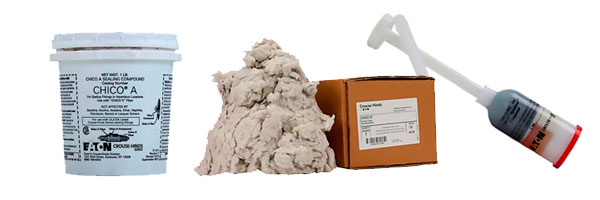

Chico A and Chico A-P Sealing Compound
Chico X Fiber
Chico SpeedSeal
Applications:
• Forms a dam between the integral bushing of the sealing fitting and the end of the conduit and around the electrical conductors entering the hub.
• Forms a seal around each electrical conductor and between them and inside of the sealing fitting to restrict the passage of gases, vapors or flames through the sealing fitting at atmospheric pressure and at normal ambient temperatures.
Chico SpeedSeal Compound is Designed to separate and form an explosionproof seal around each electrical conductor in Crouse-Hinds EYS and EYD sealing fittings. Restricts the passage of gases, vapors or flames through the sealing fitting. Creates a seal for Class I, Division 1, Groups C & D and Class II, Division 1, Groups E, F & G hazardous areas.
