Lighting Class I, Div 1, Class II, Zone 1 & Zone 21
Product Menu

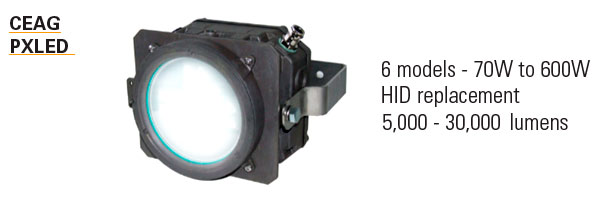

PXLED, PXLED LV for Ex-Zone 1, 2, 21 and 22
With a luminous flux from 5,000 lm up to 32.000 lm this floodlight series can be used to replace nearly every floodlight with conventional light sources with an equivalent power consumption from 70 W up to 600 W.
Features: • High efficiency: up to 110 lm/W • Operating temperature -50 °C up to +55 °C • Suitable for Explosion Group IIC / IIIC environment • Broad range of light output from 5,000 lm up to 32,000 lm • Wide and narrow beam pattern (asymmetric beam on request) • Long lifetime • Ex-e compartment for driver & terminal for easy installation and maintenance.

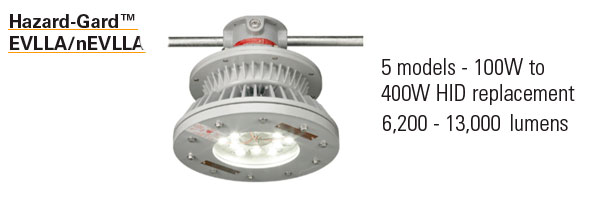

Hazard-Gard EVLLA
Cl. I, Div. 1, Groups B, C, D Cl. II, Groups E, F, G Cl. III & Simultaneous Presence, NEMA 4X.
Rugged design: • The LED housing is constructed of durable die cast aluminum, providing an efficient thermal path to the heat sink assembly • Impact-resistant lens is sealed from the outside environment and provides ingress protection against water and dust • Multi-die LEDs are used to provide energy-efficient, long life white light • Energy-efficient – up to 62% reduction in energy used versus equivalent HID fixtures • 60,000 hours rated life – eliminates need for frequent lamp replacement.

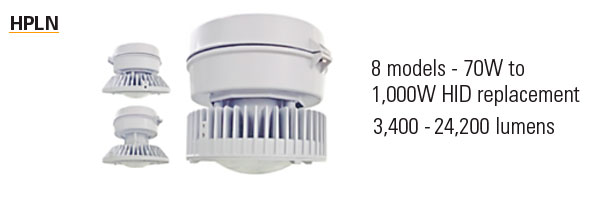

HPLN LED lighting for hazardous areas
• Ex db eb mb op is IIC T4 Gb • Ex tb op is IIIC T95˚C Db • IP66.
Application: • Locations requiring continuous and consistent light levels in extreme temperatures • Areas requiring frequent on-and-off of lights • Where flammable vapors, gases, ignitable dusts, fibers or f lyings are present; indoors or outdoors • Where extremely corrosive, wet, dusty, hot and/or cold conditions exist • Marine, wet locations and hose-down environments • Manufacturing plants, heavy industrial, chemical, petrochemical or pharmaceutical facilities, platforms, loading docks and tunnels etc. • Optionally with DALI for controlling and monitoring the luminaire • DALI 2 optional.

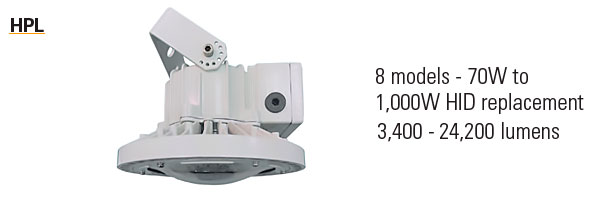

HPL LED Explosion Proof Lighting Fixtures Zone 1/21
IECEx NEP 20.0022X.
Features: • High-efficient LED module • Wide temperature range from -40 °C up to +50 °C • Compact and light weight design for flexible applications • Available in cold white CCT 5700 K and warm white 3000 K • High efficient heatsink design for an optimised temperature management • Impact, anti-shock and vibration resistant • Mercury- and lead-free for optimal environment protection • High degree of protection IP66 for harsh environments.

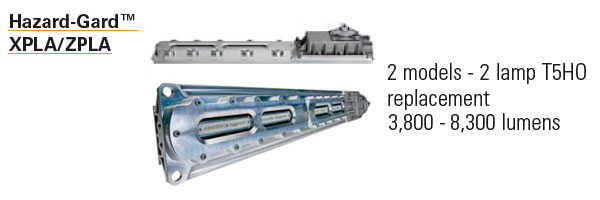

Hazard·Gard XPLA LED lighting for hazardous areas
• Class I, Division 1, Groups C, D • Class II, Division 1, Groups E, F, G • Class III • NEMA 4X; IP66 • Marine and wet locations • Paint spray rated.
Applications: Wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
ExLin series CROUSE-HINDS SERIES LED linear fi xtures for hazardous areas
EC-Type Examination Certificate • BVS 18 ATEX E 037 X IECEx-Certification of conformity • IECEx BVS 18.0028X. IP66/67.
Low profile and lightweight design with drop in mounting compatibility to eLLK fluorescent • ExLin minimizes footprint in confi ned applications and simplifi es installation efforts • ExLin has same fi xing points as eLLK 2x18W fi xtures. • Additionally, ExLin-L has same fi xing points as 36W and 58W f l uorescent fi xtures. • Upgrading conventional installation to LED is easy and quick with the ExLin and ExLin-L series.

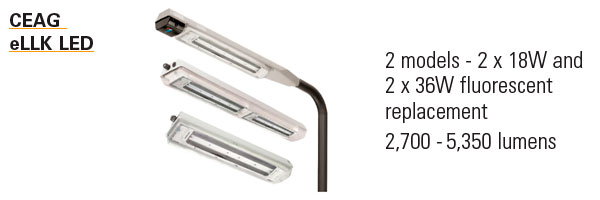

eLLK 92 LED Light Fittings Linear light fitting series
EC-Type Examination Certificate BVS 09 ATEX E 034 BVS 09 ATEX E 034 IECEx Certificate of Conformity IECEx BVS 09.0033. IP66/67.
Features: • >20 % energy savings compared to similar fl uorescent luminaires • Special LED design with direct light distribution • Proved technology. The EVG 09 has been used as a driver for more than 20 years • Various light colour temperatures available – 4000 K / 5700 K • Selected LED chips with perfect binning, low power loss and long life • Ex-e technology for easy maintenance • For ambient temperatures from -25 °C up to +55 °C.

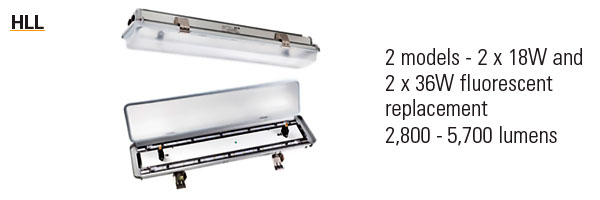

HLL linear LED lighting-hazardous area
IECEx-certification of conformity IECEx NEP 19.0003X, IECEx SEV 19.0053X, SEV 20 ATEX 0379 X. IP66.
• Reliability – Polycarbonate, 4J impact resistant – Cooper free aluminum for excellent corrosion and heat transfer properties – IP66 protection – Suitable for zone 1, 2, 21 and 22 gas and dust atmospheres – Highest temperature class T6 • DALI 2 optional.
• Permissible ambient temperature: – Standard luminaire: -40˚C~+55˚C – Emergency luminaire: -25˚C~+55˚C – Standard 5700K, also avaliable for 3000K, 4000K, 5000K, 6500K. • Anti shock and vibration proof • Mercury-free • Instant ON without time delay • Rated life of 5 years up to 55˚C provides long term, lowmaintenance operation.

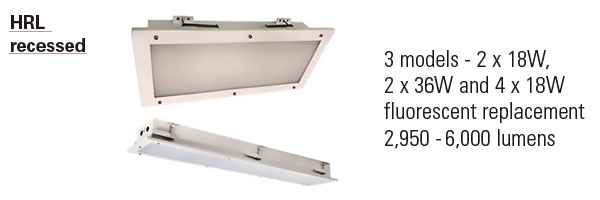

HRL LED Recessed Mount Hazardous Area Light Fixtures
IECEx / ATEX Standards: • Ex e mb IIC T6 Gb, Ex tb IIIC T80˚C Db • Ex d e mb IIC T6 Gb, Ex tb IIIC T80˚C Db(for switch version). IP66.
Enhance safety and productivity • Instant illumination and restrike • T6 temperature rating to safely operate in the most hazardous environments Reliable performance in any environment • Outstanding water and dust proof performance (IP66) • B0 & B15 fire rate Reliable operation and low quality risks • T6 rating @ 55ºC ambient for standard 100-240VAC fixtures • 108-250VDC input provision for emergency systems, cranes, etc. • 25% lumen output in emergency operation for the whole lighting Easy installation

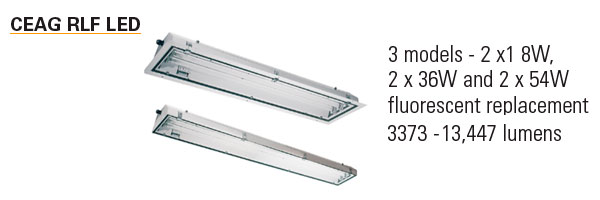

CEAG RLF Recessed Mount Hazardous Area Linear LED Fixtures
Explosion-protected recessed ceiling 22 LED-light
• Universal electronic driver for 110 – 254 V AC / 220 – 250 V DC (LED) and electronic ballast for fluorescent lamps • Various lumen packages for LED up to 13447 lm in different sizes available • Suitable for high ambient temperatures up to +60 °C (LED, on request up to -40 °C) • Flush installation, especially for spraying cabinets and paint shops with optional mounting bracket • Toughened safety glass • Stainless steel enclosure on request • With self-contained battery unit (RLF LED A…N and RLF 250… N) • Suitable for B15 fire resistance ceilings.
VLL LED Zone 1 GRP Linear Light Fixtures
IECEx-certification of conformity IECEx NEP 21.0020X, SEV 22 ATEX 0584X, IECEx SEV 22.0001X. IP66.
• Locations where require continuous and consistent light levels in extreme ambient temperatures • Areas requiring frequent on-and-off of lights • Where flammable vapors, gases, ignitable dusts, fibers or flyings are present; indoors or outdoors • Where extremely corrosive, wet, dusty, hot and/or cold conditions exist • Marine, wet locations and hose-down environments • Manufacturing plants; heavy industrial, chemical, petrochemical or pharmaceutical facilities; platforms; loading docks; tunnels • Optionally with DALI for controlling and monitoring the luminaire • DALI 2 optional.

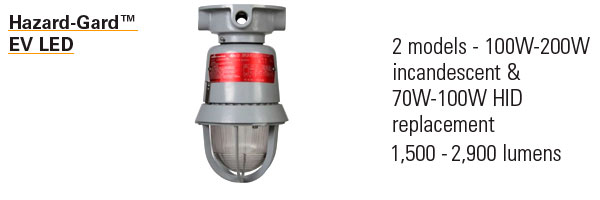

EV LED Explosionproof LED Light Fixtures
• Class I, Division 1, Groups C, D • Class I, Zones 1 & 2, Group IIB • Class II, Groups E, F, G • Marine and wet locations, Type 4X, IP66 • UL Listed.
• Two lumen outputs for replacement of existing HID and incandescent luminaires • Locations requiring continuous and consistent light levels in extreme ambient temperatures • Areas requiring frequent on-and-off of lights • Where flammable vapors, gases, ignitable dusts, fibers or flyings are present; indoors or outdoors • Where extremely corrosive, wet, dusty, hot and/or cold conditions exist • Type 4X, marine, wet locations and hose down environments.

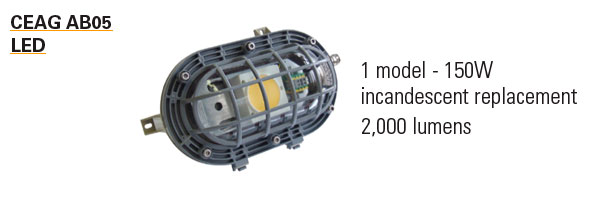

CEAG AB05 LED Explosion-protected Light Fixtures
EC-Type Examination Certificate BVS 09 ATEX E 014 X IECEx Certificate of Conformity IECEx BVS 09.0032X.
Features:
• Extremely rugged design for extremely harsh environments.
• Various illuminants can be used.
• Wide ambient temperature range depending on the version (-55 °C to +55 °C ).
• High degree of protection up to IP 67.
