Rigid HDG, Aluminum, PVC Sch40, EMT
Product Menu

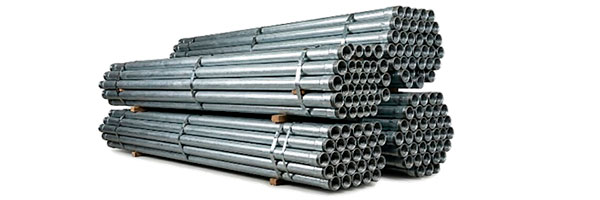

HOT-DIP GALVANIZED RIGID CONDUIT
UL 6 APPROVED, QUALITY RIGID CONDUIT
10 feet length.
Diameters: ½”, ¾”, 1″, 1¼”, 1½”, 2″, 2½”, 3″, 3½”, 4″, 5″, 6″.
A dependable, Manufacturing flexibility long-lasting rigid conduit to protect your electrical with high-strength steel allows our conduit raceway systems. to be damage-resistant while also allowing to meet your installation needs. Our rigid conduit is hot-dipped galvanized bending with a smooth interior and exterior allowing for easy pulling rust. Our threads are galvanized after cutting to ensure that the threads will be protected against corrosion.
HOT-DIP GALVANIZED RIGID ELBOWS
Galvanized Rigid Steel Elbows are used in conjunction with rigid couplings to make a 45° or 90° degree bend between two lengths of threaded Galvanized Rigid Conduit (GRC) or Intermediate Metal Conduit (IMC) conduit. The curvature of the conduit is used to fit specific locations and/or make turns or change directions in the installation. Curvature of the conduit is used to fit specific locations and/or make turns or change directions in the installation. Can be used in both indoor and outdoor applications, offering the customer increased flexibility.
Made of steel and galvanized for corrosion resistance NPT threads.

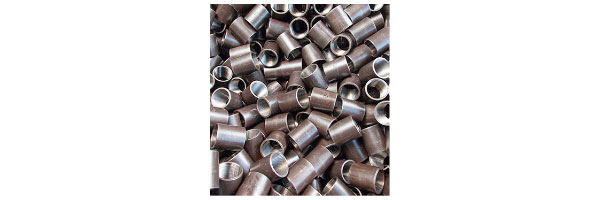

GALVANIZED CONDUIT COUPLINGS
• Trade Size 1/2” and 3/4” have standard 14 NPS threads.
• Trade Size 1” thru 2” have standard 11-1/2 NPS threads.
• Trade Size 2-1/2” thru 6” have standard 8 NPS threads.
• Manufactured to UL6 specifications.
• Manufactured to ANSI C80.1-1994 specifications.

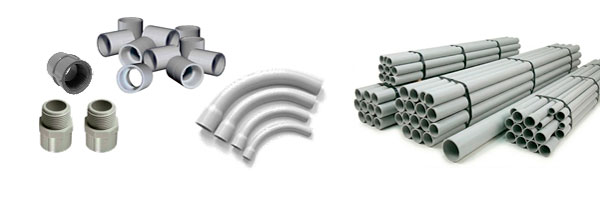

PVC SCHEDULE 40 CONDUIT, ELBOWS AND COUPLINGS
Schedule 40 PVC conduit is a rigid, nonmetallic electrical raceway designed for protecting wiring in residential, commercial, and industrial applications. It is sunlight-resistant, fire-resistant (self-extinguishing), and suitable for direct burial, concrete encasement, or exposed indoor/outdoor use. It is lighter and easier to install than metal alternatives.
Elbows, copuplings and malefemale or female-female adapters to HDG NPT are available.

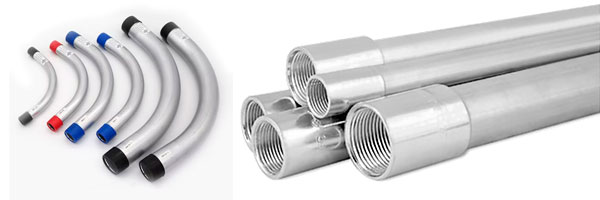

ALUMINUM CONDUIT, ELBOWS, COUPLINGS
High Corrosion Resistance: Aluminum naturally forms a protective, non-porous oxide layer when exposed to air, preventing further corrosion and making it exceptionally resistant to a wide range of chemicals, acids, and environmental conditions.
Non-Magnetic and Non-Sparking: Aluminum is non-ferromagnetic, meaning it does not become magnetized and does not create sparks when struck.
Uses: Ideal for coastal environments with salt spray, food and beverage processing plants, chemical facilities, and water treatment plants where aggressive corrosion would degrade steel conduit.
