Lighting Class I Div 2, Class II, Zone 2 & Zone 22
Product Menu

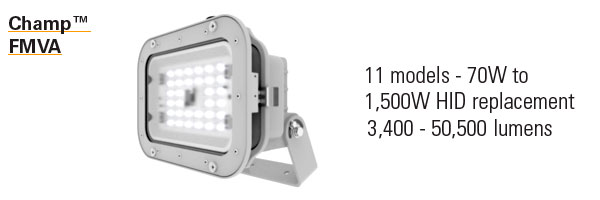

Champ FMVA LED Hazardous Area Floodlights
• Class I, Division 2, Groups A, B, C, D • Class II, Division 1, Groups E, F, G • Class III & Simultaneous Presence • Marine and wet locations, Type 4X, IP66.
Crouse-Hinds series Champ FMVA LED floodlights are designed to provide full-spectrum, crisp, white light in Class I and Class II hazardous areas. Eleven versions of the Champ FMVA are available, ranging from 3,000 to 50,000 lumens, providing a reliable and long-life solution for a wide range of floodlighting applications.
Champ FMVA LED floodlights are certified for use in NEC, CEC and IEC hazardous locations, providing a single solution for applications around the world. These floodlights are ideal for outdoor wall and stanchion mounted general area lighting, where flammable vapors, gases, ignitable dusts, fibers or flyings are present.

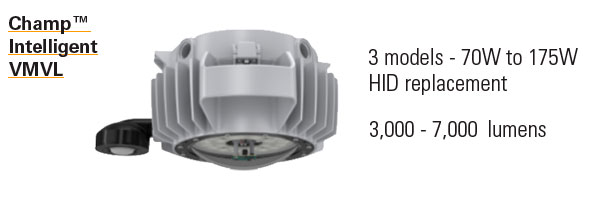

Champ VMVL LED Intelligent Lighting Control and Insights for Hazardous Areas
Performance in extreme environments.
• Up to 60,000 hours lifetime at +65 ºC • Operating ambient –40 ºC to +65 ºC • Type 4X, IP66 • Corrosion-resistant aluminum housing with Corro-free™ epoxy power coating • Vibration tested in accordance with Section 33 of UL 844 • Impact tested in accordance with Section 68 of UL 844 • 6 kV surge protection.
Retrofit-friendly universal top hats: 7 mounting module styles help ensure that the fixtures are installed in the correct location to properly light your facility.

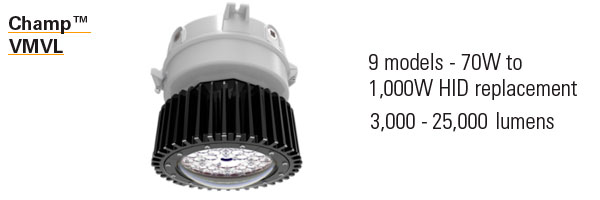

Champ VMVL LED Hazardous Area Light Fixtures
• Class I, Division 2, Groups A, B, C, D • Class II, Groups E, F, G • Class III • Class I, Zone 2 AEx ec mb IICT*GC
Champ VMVL LEDs are certified for use in NEC, CEC and IEC hazardous locations. These light fixtures are ideal for indoor and outdoor general area lighting in oil and gas refineries, drilling rigs, petrochemical plants, food and beverage facilities, and other industrial applications where flammable gases, vapors, dusts, fibers or flyings are present.
The VMVL LED is also available with an integral battery back-up system for emergency lighting applications providing 90 min of emergency lighting.

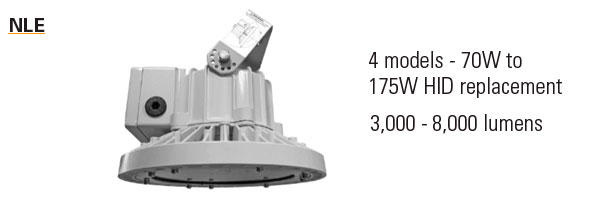

NLE LED Hazardous Area Light Fixtures
EC-Type Examination Certificate EPT 16 ATEX 2452X IECEx Certificate of Conformity IECEx CQM 16.0013X. IP66.
Features:
• High-efficient LED module • Wide temperature range from -40 °C up to +55 °C • Compact and light weight design for flexible applications • Available in cold white CCT 5700 K and warm white 3000 K • High efficient heatsink design for an optimised temperature management • Impact, anti-shock and vibration resistant • Mercury- and lead-free for optimal environment protection • High degree of protection IP66 for harsh environments.

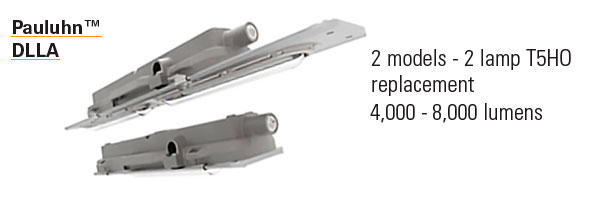

Pauluhn DLLA Hazardous Area Linear LED Light Fixtures
NEC/CEC standards: • Class I, Division 2, Groups A, B, C, D • Class I, Zone 2 • Class II, Division 2, Groups F, G • Class III • Type 4X; IP66/67 • Marine and Wet Locations.
• High efficacy: up to 134 LPW (DLLA2 with UNV1 driver) • Dimmable driver, 0-10V • -40°C to +65°C ambient operating temperature (standard model) • 0°C to +40°C ambient operating temperature (emergency battery back-up model) • Integral emergency battery back-up: 90 minute run-time and >1,000 lumens (all models) • Low profile (~4″ height) • Ceiling/swivel, wall, flush, pole and pendant mounting options • Wide and narrow optics for uniform illumination • Four points of secondary retention • 2,000 psi high pressure hose rated • High vibration resistance • Surge protection (Standard): 4kV line to line, 6kV line to earth • Surge protection (with SRG1 or SRG3 suffix): >10kV line to line, >10kV line to earth.

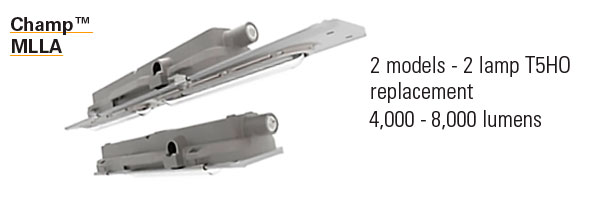

Champ MLLA Hazardous Area Linear LED Light Fixtures
NEC/CEC standards: • Class I, Division 2, Groups A, B, C, D • Class I, Zone 2 • Class II, Division 1, Groups E, F, G • Class III • Type 4X; IP66/67 • Marine and Wet Locations.
• High efficacy: up to 134 LPW (MLLA2 with UNV1 driver) • Dimmable driver, 0-10V • -40°C to +65°C ambient operating temperature (standard model) • 0°C to +40°C ambient operating temperature (emergency battery back-up model) • Integral emergency battery back-up: 90 minute run-time and >1,000 lumens (all models) • Low profile (~4″ height) • Ceiling/swivel, wall, flush, pole and pendant mounting options • Wide and narrow optics for uniform illumination • Four points of secondary retention • 2,000 psi high pressure hose rated • High vibration resistance • Surge protection (Standard): 4kV line to line, 6kV line to earth • Surge protection (with SRG1 or SRG3 suffix): >10kV line to line, >10kV line to earth.

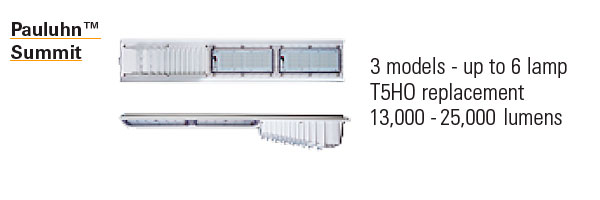

Pauluhn Summit LED luminaires
Certifications and compliances:
• Class I, Division 2, Groups A, B, C, D
• Class II, Division 1, Groups F, G.
• CSA 22.2 No. 137
• Type 4X, IP66
• UL standards: UL1598, UL8750, UL844.
• NSF Splash Zone.
Features
• High efficacy – 100+ LPW.
• Angled light fixture for debris shedding.
• Surface mount, cable mount and threaded rod mount.
• Replaces up to 4 foot 6-lamp T5HO.
• Operating temperature: -40°C to +55°CB.
• 1,500 PSI hose down tested.
• Minimum 60,000 hour LED and driver life at 40°C ambient.
• Through feed design for multiple fixture wiring.
• 5000K, 80 CRI.
• 5 year fixture warranty

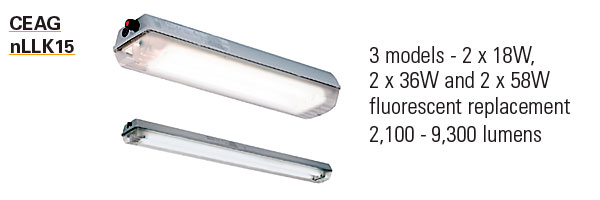

CEAG nLLK 15 LED Non-metallic Hazardous Area Linear Light Fixtures.
The series of light fittings nLLK 15 LED for Aura UltiLED (Pro) long life LED tubes combines latest lighting engineering with the requirements of harsh and hazardous environments. This luminaire series is available both as surface-mounted luminaire (nLLK) and as pole-mounted luminaire (nLLM) in various sizes. The explosion protected luminaires are approved for use in gas- and dust-Ex-areas fulfilling the requirements of the ATEX directive 2014/34/EU.
Features: • Replaceable driver and light source • Self-contained battery version available • Connection to CEAG emergency light monitoring systems available (V-CG-S) • Light controlling via DALI interface as option (DALI) • Cost efficient installation due to single sided through wiring • Easy maintenance by double sided safety lock • High lumen output • High degree of protection IP 66 • Available with safety switch on request.

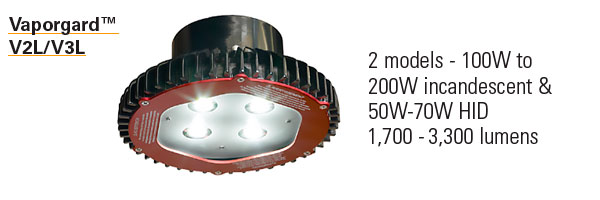

Vaporgard V2L/V3L Hazardous Area LED Light Fixtures
• Class I, Division 2, Groups A, B, C, D • Class II, Divisions 1 & 2, Groups F, G.
Applications: • Oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, platforms, loading docks, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present • Locations requiring continuous and consistent light levels in extreme ambient temperatures • Where extremely corrosive, wet, dusty, hot and/or cold conditions exist • Type 4X, marine, wet locations and hose down environments • Confined space or low ceiling areas, such as tunnels, utility rooms, over doorways, entries, landings, etc. • Areas requiring frequent on/off of lights • Areas where maintenance is difficult or challenging • Areas requiring shatter-protected products, such as food processing facilities • Outdoor wall or ceiling mounted area illumination • Low mounting heights.

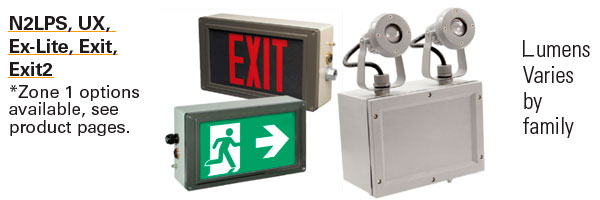

Emergency and exit
Emergency lighting and exit signs provide safe, reliable illumination during failure or interruption of power, as well as distinct, highly visible exit marking to indicate the direction of travel to exits.

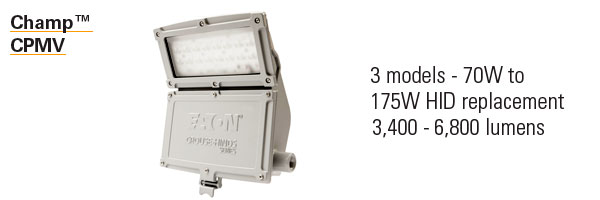

Champ CPMV LED Hazardous Area Wallpack Light Fixtures
Certifications & compliances: • NEC and CEC • UL Standards: UL1598, UL1598A, UL 844, UL8750 • CSA Standard: C22.2 No. 137 • Class I, Division 2, Groups A, B, C, D, • Class II, Division 1, Groups E, F, G • Class III & Simultaneous Presence • Marine and Wet Locations, NEMA 4X and IP66.
Primary applications:
• Oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, platforms, loading docks, tunnels, outdoor wall mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present • Locations requiring continuous and consistent light levels in extreme ambient temperatures • Where extremely corrosive, wet, dusty, hot and/or cold conditions exist • NEMA 4X, marine, wet locations and hose-down environments • Classified and hazardous locations.
