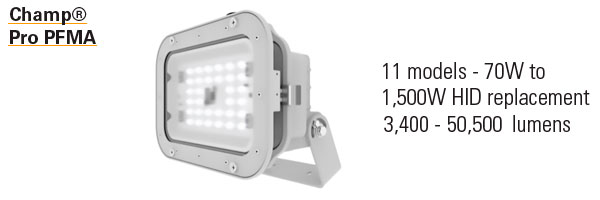

Champ Pro PFMA LED Industrial Floodlights
Designed to provide full-spectrum, crisp, white light in heavy industrial and harsh areas.
Eleven versions of the Champ PFMA are available, ranging from 3,000 to 50,000 lumens, providing a reliable and long-life solution for a wide range of floodlighting applications.
Our PFMA LED floodlights are designed with a Type 4X, epoxy powder coated die cast aluminum housing, making them ideal for outdoor wall and stanchion mounted general area lighting where corrosive, wet, dusty, hot and/or cold conditions exist.

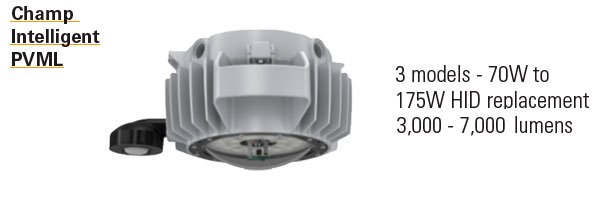

Champ Pro PVML LED Intelligent Lighting Control and Insights for Industrial Areas
Champ™ light fixtures are renowned for their reliability and safety in harsh and hazardous lighting applications. And now, they are available with intelligent control and insight capabilities, delivering more operational value and better total cost of ownership.
Combining advanced LED lighting design with communications and sensing technology and an intuitive app-based interface, you now have full lighting control at your fingertips — improving safety, maximizing energy savings and minimizing maintenance costs.
Available from 3,000 to 7,000 lumens, Champ PVML Intelligent lighting is engineered to provide maintenance-free illumination, long life and high performance in harsh industrial areas where water, dirt, high vibration, extreme temperatures, and corrosion may be present.

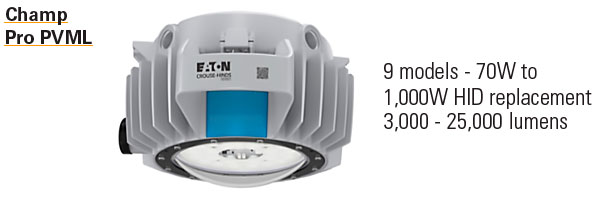

Champ Pro PVML Industrial LED Light Fixtures
Crouse-Hinds series Champ Pro PVML LED fixtures are designed to provide full-spectrum, crisp, white light for industrial mid bay and high bay downlighting applications. The PVML LED is available in nine models ranging from 3,000 lumens to 25,000 lumens. This offers a lighting solution for areas with mounting heights from 8’ all the way up to 60’.
PVML LED light fixtures are engineered to provide maintenance-free operation, while delivering long life and high lumen performance. The Type 4X fixture provides up to 127 lumens per watt, and custom Type I, III and V optics maximize light distribution and intensity.

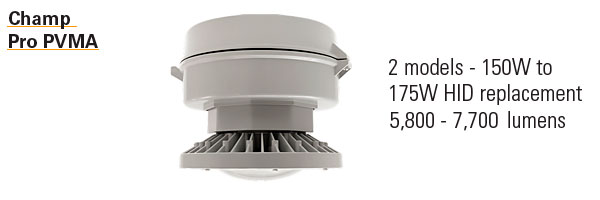

Champ Pro PVMA Low Bay Industrial LED Light Fixtures
Champ Pro PVMA low bay LED fixtures from Eaton’s Crouse-Hinds Division are engineered to provide maintenance-free illumination in the most demanding environments.
The Champ Pro PVMA features a compact, high efficacy design with custom Type I, III and V optics to ensure maximum efficiency and mounting flexibility, including the ability to retrofit the Crouse-Hinds installed base to service both LED upgrades and new projects.
The compact and lightweight PVMA LED light is available in 5,000 and 7,500 lumen models. It is designed to perform reliably in indoor or outdoor areas where extreme ambient temperatures, corrosive, wet or dusty conditions or high vibration are common.

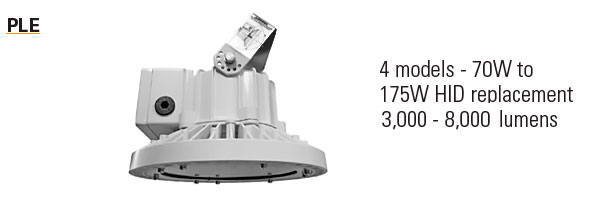

PLE Industrial LED Light Fixtures
PLE LED fixtures are the ideal replacement for 70-175 watt HID fixtures, and are suitable for use in ordinary and non-hazardous locations where extremely corrosive, wet, dusty, hot and/or cold conditions exist.
PLE is available in four models ranging from 3,000 lumens to 8,000 lumens, providing a lighting solution for a wide range of applications. The fixture is also available with an option for emergency lighting applications.
PLE LED fixtures are engineered to provide maintenance-free operation, while delivering long life and high lumen performance. A high-efficacy design provides up to 100 lumens per watt. Multiple mounting options, including pendant, ceiling, wall, yoke and pole, provide installation flexibility.

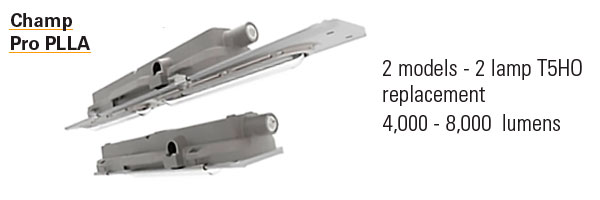

Champ Pro PLLA Industrial Linear LED Light Fixtures
Champ Pro PLLA linear LED is specifically designed to replace fluorescent T12, T8 and T5HO lighting in heavy and harsh industrial applications. Available in 2 foot and 4 foot versions with 4,000 lumens and 8,000 lumens respectively, the PLLA features a rugged and durable design with the industry’s most versatile and flexible mounting options.
The PLLA is the ideal linear lighting solution for non-hazardous areas in mining, food processing, marine, wastewater treatment, heavy manufacturing and other applications where high vibration, impact and hose down are a common occurrence.

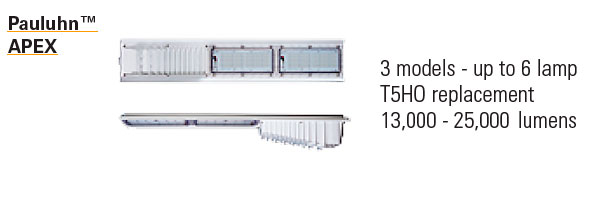

Pauluhn Apex Industrial Linear LED Light Fixtures
Pauluhn Apex linear LED light fixtures are designed to replace fluorescent T12, T8 and T5HO luminaires in food processing, hose down and corrosive environments.
The Apex was designed with food and beverage processing facilities in mind.
The fixture housing is angled to mitigate debris build-up and features a food rated epoxy powder coat finish.
Plus, its robust design can withstand 1,500 PSI hose pressure for wash down applications.
Three models of the Apex are available, from 13,000 to 25,000 lumens.
Pauluhn FPS Industrial Linear LED Light Fixtures
Pauluhn FPS is a low/mid bay linear LED luminaire for marine and industrial locations.
The FPS LED is designed with a non-metallic housing for superior corrosion resistance, and it is IP66 rated for moisture protection in hose down and marine applications.
The FPS LED is available with an optional emergency battery back-up, as well as red or blue LEDs for naval applications. Type 4X, IP66

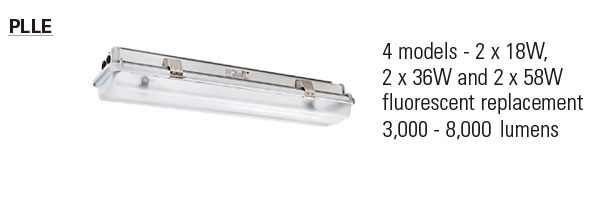

PLLE Industrial LED Linear Light Fixtures
PLLE linear LED light fixtures are constructed with an aluminum housing and high impact-resistant polycarbonate cover, providing extreme durability and reliability in harsh and heavy industrial areas. The fixture is also available with an optional battery back-up for emergency lighting applications.
The use of high quality LED chips, coupled with our extensive experience in thermal management of electrical components in harsh areas, ensures long service life of the PLLE series. The extended temperature range of -40°C to +55°C allows these luminaires to be used in a wide range of ambient conditions.

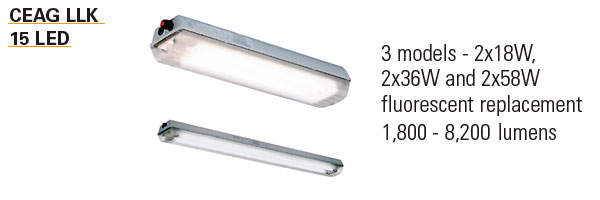

CEAG LLK 15 Non-metallic Industrial LED Light Fixtures
LLK 15 LED light fixtures utilize long-life LED tubes to provide general illumination, indoors or out. The IP66 housing, coupled with IP65 Aura Ulti-LED tubes, ensures the most reliable protection in harsh and aggressive environments.
A double-sided lock with latch points allows for the LLK 15 fixture to be mounted on either side.
The LLK 15 is also available with an integrated light switch, and each individual fixture can be controlled and dimmed using the optional DALI interface.

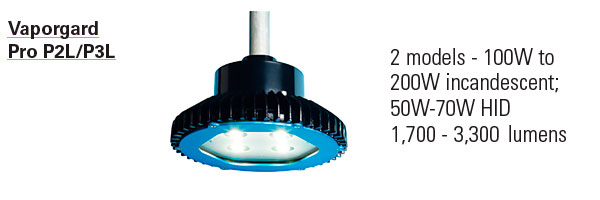

Vaporgard Pro P2L/P3L Industrial LED Light Fixtures
For targeted illumination in industrial areas. The Crouse-Hinds series Vaporgard Pro P2L/P3L LED light fixture provides uniform crisp, white light and is suitable for lower mounting heights, confined spaces, tunnels or utility rooms.
The Vaporgard Pro LED’s unique domeless, low profile design is ideal for compact spaces where incandescent and HID-based luminaires are too large to fit in the mechanical envelope required.
The Vaporgard Pro LED is available in 1,700 and 3,300 lumen models, with color temperature options of cool white, neutral white and warm white. Using four high power, high brightness LED arrays, this fixture delivers similar light levels to a 50W HID or 150-200W incandescent.

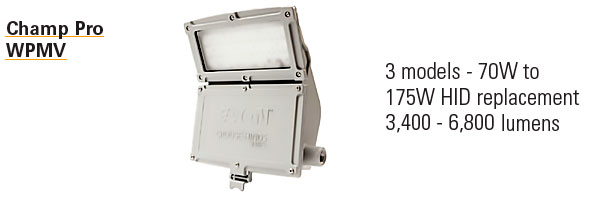

Champ Pro WPMV LED Industrial Wallpack Light Fixtures
The Crouse-Hinds series Champ Pro WPMV is uniquely engineered to provide a low profile wallpack solution for industrial lighting applications.
It’s the ideal choice for vertical surface lighting where conditions require high quality, reliable illumination.
Champ Pro WPMV LED wallpacks are engineered to provide maintenance-free illumination, long life and high performance in industrial areas.
They are available from 3,000 to 7,000 lumens and are designed for extreme conditions.
