ALTR alternating light control transfer relay
Eaton’s Crouse-Hinds series ALTR is an economical solution for applications where the obstruction lights are difficult and/or expensive to service, such as towers or stacks with obstruction lights that are inaccessible through normal methods.
The ALTR4 alternates between each light in a double obstruction light assembly each time the tower lights are energized by the photocontrol. This ensures equal usage of the lights over the life of the fixtures. In the event one of the lights fails, the ALTR automatically energizes the operational light and provides an output for remote alarm monitoring.
The ALTR provides maximum life on both lights and essentially doubles the time between service calls.
ALTR X4 alternating light control transfer relay for hazardous areas
The Crouse-Hinds series ALTR-X4 is an economical solution for hazardous area applications where the obstruction lights are difficult and/or expensive to service, such as towers or stacks that have obstruction lights that are inaccessible through normal methods.
Utilizing a Class I, Division 2 enclosure, the ALTR-X4 alternates between each light in a double obstruction light assembly each time the tower lights are energized by the photocontrol. This ensures equal usage of the lights over the life of the lamps. In the event one of the lights fails, the ALTR-X4 automatically energizes the operational light and provides an output for remote alarm monitoring.
The ALTR-X4 provides maximum life on both lights and essentially doubles the time between service calls.

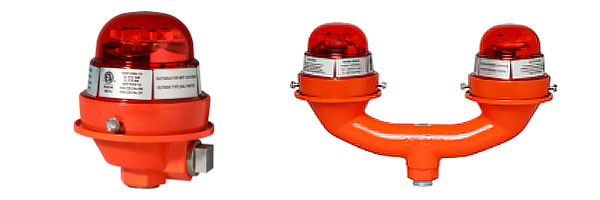

L-810 LED low intensity red obstruction side marker with infrared (IR)
Crouse-Hinds series L-810 LED low intensity red obstruction side markers are used as a midpoint light on structures over 200′ in height or a top level light on low airfield buildings and long horizontal structures such as perimeter fences and roof outlines.
L-810 side markers incorporate both red and infrared LEDs in a single unit to ensure visibility around various obstructions during normal flight and when aided by night vision. Aviator’s Night Vision Imaging Systems (ANVIS) and night vision goggles (NVGs) often employ Class A, B and C filters, which can impact visibility to light in the visible spectrum.
Each flash head provides 360° coverage and performs reliably in industrial areas and extreme environmental conditions.

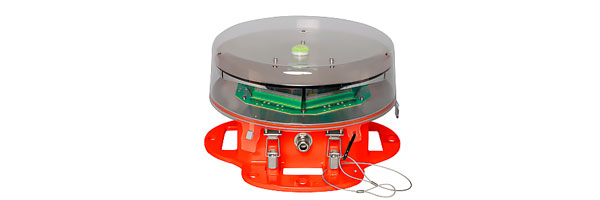

L-864 LED medium intensity red beacon with infrared (IR)
Crouse-Hinds series L-864 LED medium intensity beacons are designed for use with FAA Type A lighting configurations, the L-864 red beacons incorporate both red and infrared LEDs in a single unit to ensure visibility around military bases, airfield perimeters, buildings, towers and other obstructions to aircraft pilots, both during normal flights and when aided by night vision systems.
Precision optics ensure maximum visibility with minimal ground scatter, and long-life LEDs dramatically reduce maintenance costs and non-compliance risks.
ETL certified to FAA requirements and compliant to ICAO and TransportCanada standards

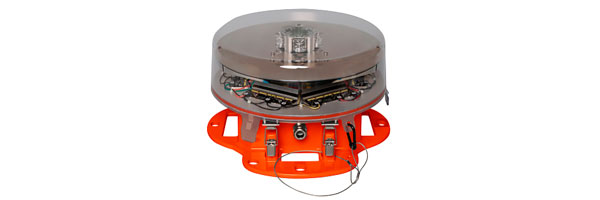

L-864/L-865 LED medium intensity flashing dual red/white beacon with infrared (IR)
Crouse-Hinds series L-864/L-865 LED medium intensity beacons are designed for use with FAA Type D and E lighting configurations. The flashing white/red beacons also incorporate infrared LEDs in a single unit to ensure visibility around military bases, airfield perimeters, buildings, towers and other obstructions to aircraft pilots, both during normal flights and when aided by night vision systems.
These white/red IR beacons are ideal for towers, stacks, wind turbines and buildings in industrial settings.
Precision optics ensure maximum visibility with minimal ground scatter, and long-life LEDs dramatically reduce maintenance costs and non-compliance risks.

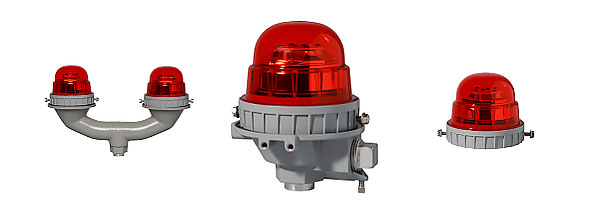

LED low intensity red obstruction side marker for hazardous areas
Crouse-Hinds series LED low intensity red obstruction side markers are used as a midpoint light on structures over 200′ in height or a top level light on low airfield buildings and long horizontal structures such as perimeter fences and roof outlines.
These side markers are rated for use in Class I, Division 2 hazardous areas, they’re ATEX and IECEx certified, and they are designed for use with Type A FAA lighting configurations.
Available as a single or dual light unit, each flash head provides 360° coverage and performs reliably in hazardous areas and extreme environmental conditions.

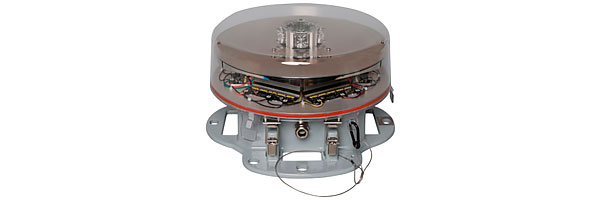

LED medium intensity flashing dual red/white beacon for hazardous areas
Designed for use with FAA Type D and E lighting configurations, Crouse-Hinds series LED medium intensity red/white beacons are ideal for towers, stacks, wind turbines and buildings located in hazardous areas.
Precision optics ensure maximum visibility with minimal ground scatter, and long-life LEDs dramatically reduce maintenance costs and non-compliance risks. Each beacon provides 360° coverage and performs reliably in classified areas and extreme environmental conditions.

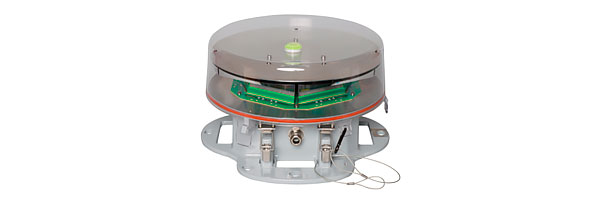

LED medium intensity red beacon for hazardous areas
Designed for use with FAA Type A lighting configurations, Crouse-Hinds series LED medium intensity red beacons are ideal for towers, stacks, wind turbines and buildings located in hazardous areas.
Precision optics ensure maximum visibility with minimal ground scatter, and long-life LEDs dramatically reduce maintenance costs and non-compliance risks. Each beacon provides 360° coverage and performs reliably in classified areas and extreme environmental conditions.
OLC obstruction lighting controllers
Obstruction lighting controllers enable the reliable control and monitoring of LED obstruction light systems. An array of indicators and remote alarms help report overall system health and status.
OLC series aviation obstruction lighting controllers, a part of Eaton’s Crouse-Hinds series portfolio, are engineered to meet the most demanding industrial area environmental applications.
Utilizing Crouse-Hinds series industrial rated enclosures with integrated failure monitoring and control, the OLC series provides a complete obstruction lighting system compliant to FAA and ICAO guidelines.
OLC X4 obstruction lighting controllers for hazardous areas
Obstruction lighting controllers enable the reliable control and monitoring of LED obstruction light systems. An array of indicators and remote alarms help report overall system health and status.
OLC X4 series aviation obstruction lighting controllers, a part of Eaton’s Crouse-Hinds series portfolio, are engineered to meet the most demanding hazrdous area applications.
Utilizing Crouse-Hinds series hazardous rated enclosures with integrated failure monitoring and control, OLC X4 controllers provide a complete obstruction lighting system compliant to FAA and ICAO guidelines.

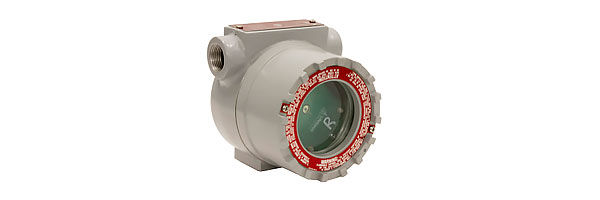

Photocontrol assemblies for hazardous area OLC X4 controllers
Crouse-Hinds series photocontrol unit and photocontrol/flasher combo assembly for tower and obstruction lighting applications in hazardous areas are calibrated to switch ON at dusk and OFF at dawn at light levels set per FAA specifications. Designed for use with both red and dual red/white systems.
The photocontrol flasher assembly works as a photocell device and also flashes the RED beacon 30 flashes per minute.
Photocontrol assemblies for OLC controllers
Crouse-Hinds series photocontrol unit and photocontrol/flasher combo assembly for tower and obstruction lighting applications are calibrated to switch ON at dusk and OFF at dawn at light levels set per FAA specifications. Designed for use with both red and dual red/white systems.
The photocontrol flasher assembly works as a photocell device and also flashes the RED beacon 30 flashes per minute.
